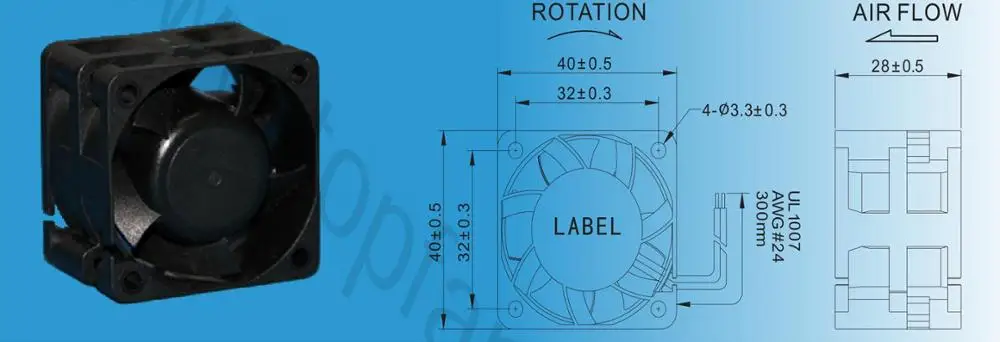

40*40*28mm dc DVD energy saving air cooler electric motor cooling fan
General Specifications
frame: plastic
impeller: plastic
bearing type: dual ball bearing
leadwire: ul 1007 AWG#24 or equivalent (+):red (-)black
motor: impdance protected and reverse polarity protected
| Model | Rated voltage | Operating Voltage Range | Current Amp (Amp) | Rated Input Power (Watt) | Speed | Max air Flow (CFM) | Max Static Pressure (Inch-H2o) | Noise Level (dB-A) | Weight (g) |
| MX4028ZBH1 | 12 | 7.0 to 13.8 | 0.52 | 6.24 | 13000 | 24.0 | 1.08 | 52 | 40 |
| MX4028ZBM1 | 12 | 7.0 to 13.8 | 0.36 | 4.32 | 10000 | 15.9 | 0.60 | 42 | 40 |
| MX4028ZBH2 | 24 | 14.0 to 27.6 | 0.26 | 6.24 | 13000 | 24.0 | 1.08 | 52 | 40 |
| MX4028ZBM2 | 24 | 14.0 to 27.6 | 0.17 | 4.08 | 10000 | 15.9 | 0.60 | 42 | 40 |
| Notice |
| 1. If you want another rpm or voltage or special functionm Please contact with us directly . |
| 2. The size , voltage, power & speed can be made according to your requirements ! |
| 3. Could be made with waterproof function |
| 4. We're professional manufacturer of cooling fans for 11 years' experience |
| 5. On time delivery |
| 6. We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans |
7. We can also provide fans with longer use time.
|
Question & answer:
-1. What kind of cooling fans are supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan blower fan and cross flow fan.
-2. What kind of information should be provided by the customer before order?
Answer : please kindly advise Size, Rated voltage, Bearing type, Speed or air flow,Lead wires and specific function.
-3. How many kind of bearings for cooling fans are there in your compnay at present?
Answer : now we have two types bearing for the fan, sleeve bearing and ball bearing.
-4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel we have a complete set of professional testing equipment.
-5. How to control the quality of products in your company.
Answer: 100% total testing before each fan dispatched,and Each completed a small part is also tested .
Specifications
Product Tags:
|
|
DVD CPU Energy Saving Air Cooler / Electric Motor Cooling Fan Black Color Images
|
